LBO

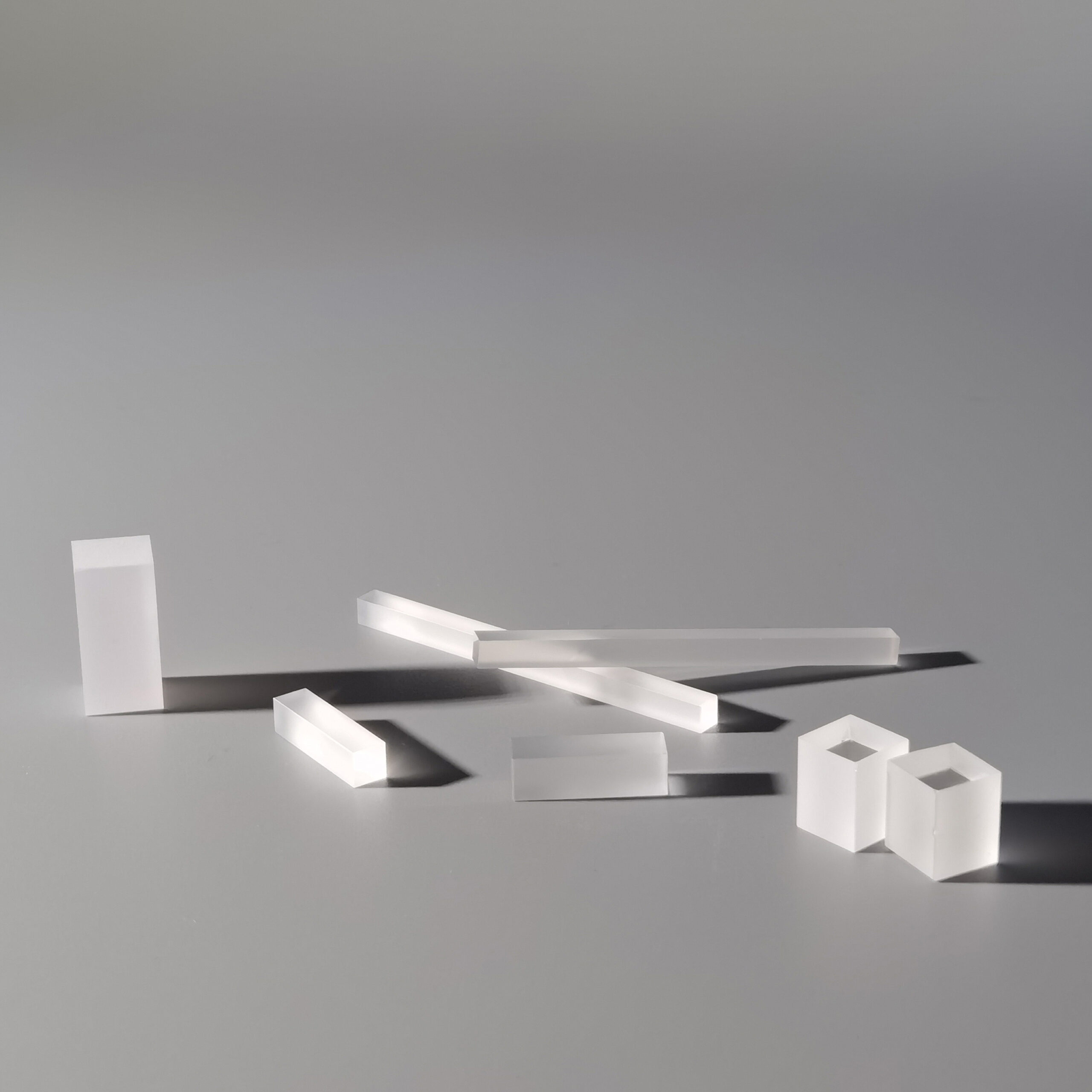

LBO (Lithium Triborate) is a nonlinear crystal with high optical homogeneity, broad angular and temperature bandwidth, and high damage threshold. It has a wide range of applications in nonlinear optics, including frequency doubling, mixing, and optical parametric oscillation. LBO crystal is also highly resistant to moisture and provides excellent resistance to optical and mechanical shocks.

Category:
DIMENSION

DIMENSION

Product No.Size（mm)θ（°）Φ（°）Coating
LBO-3013 × 3 × 89011.6AR/AR @ 1064 + 532 nm
LBO-3023 × 3 × 109011.6AR/AR @ 1064 + 532 nm
LBO-3033 × 3 × 159011.6AR/AR @ 1064 + 532 nm
LBO-3043 × 3 × 15900AR/AR @ 1064 + 532 nm
LBO-3053 × 3 × 209011.6AR/AR @ 1064 + 532 nm
LBO-3063 × 3 × 20900AR/AR @ 1064 + 532 nm
LBO-3073 × 3 × 30900AR/AR @ 1064 + 532 nm
LBO-3083 × 3 × 50900AR/AR @ 1064 + 532 nm
LBO-4014 × 4 × 109011.6AR/AR @ 1064 + 532 nm
LBO-4024 × 4 × 10900AR/AR @ 1064 + 532 nm
LBO-4034 × 4 × 159011.6AR/AR @ 1064 + 532 nm
LBO-4044 × 4 × 15900AR/AR @ 1064 + 532 nm
LBO-4054 × 4 × 209011.6AR/AR @ 1064 + 532 nm
LBO-4064 × 4 × 20900AR/AR @ 1064 + 532 nm
LBO-4074 × 4 × 60900AR/AR @ 1064 + 532 nm
LBO-5015 × 5 × 109011.6AR/AR @ 1064 + 532 nm
LBO-5025 × 5 × 159011.6AR/AR @ 1064 + 532 nm
LBO-5035 × 5 × 209011.6AR/AR @ 1064 + 532 nm
LBO-6016 × 6 × 100900AR/AR @ 1064 + 532 nm

TECHNICAL PARAMETERS

TECHNICAL PARAMETERS

Argument NameValues and Ranges
Size Tolerance±0.1 mm
Dimension ToleranceΔq<0.5°,Δj<0.5°
Clear Aperture> 90%
Surface Quality10/5.（after coating）20/10
Flatness< λ/10@633nm
Wavefront Distortion< λ/8@633nm
Parallelism< 20 arc sec
Perpendicularity< 5 arc min
CoatingAR, BBAR, P-coatings
Quality Warranty Period1 year (under proper use)

Crystal Structure and Physical Properties

Argument NameValues and Ranges
Crystal StructureOrthorhombic，Space group Pna21，Point group mm2
Crystal Parametera =8.4473 Å，b=7.3788 Å，c=5.1395 Å，Z=2
Melting PointAbout 834°C
Mohs Hardness6
Density2.47 g/cm3
Thermal Expansion Coefficientɑx=10.8 × 10-5/K，ɑy=-8.8 × 10-5/K，ɑz=3.4 × 10-5/K
Absorption Coefficient＜0.1%/cm at 1064nm

Description

We offer：

♦ LBO crystals of length up to 90 mm and aperture up to 60 × 60 mm

♦ AR, BBAR, P-coatings

♦ Different mounting and repolishing services

Main features:

♦ High optical uniformity

♦ Wide range of light transmission bands (160-2600 nm)

♦ High frequency multiplication conversion rate (3 times KDP)

♦ High damage threshold

Typical applications:

♦ Frequency doubling for Nd:YAG and Nd:YLF lasers

♦ Optical Parametric Amplifier (OPA) and Optical Parametric Oscillator(OPO)

♦ Ruby, Ti:Sapphire, and Cr:LiSAF Laser Frequency Doubling
