Dimension

Product No.	Size（mm）	θ（°）	Φ（°）	Coating	Application
BBO-601A	6 × 6 × 0.01	44.3	90	P/P@400-800/266 nm on UVFS substrate 10102 mm	THG@800 nm, Type 1
BBO-602A	6 × 6 × 0.02	44.3	90	P/P@400-800/266 nm on UVFS substrate 10102 mm	THG@800 nm, Type 1
BBO-603A	6 × 6 × 0.05	29.2	90	P/P@400-800 nm on UVFS substrate 10102 mm	SHG@800 nm, Type 1
BBO-604A	6 × 6 × 0.05	44.3	90	P/P@400-800/266 nm on UVFS substrate 10102 mm	THG@800 nm, Type 1
BBO-605A	6 × 6 × 0.1	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-606A	6 × 6 × 0.1	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-607A	6 × 6 × 0.1	46	90	P/P@400-1040/300-500 nm	Type 2 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-608A	6 × 6 × 0.2	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-609A	6 × 6 × 0.2	43	90	P/P@250-700nm	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-610A	6 × 6 × 0.3	23.4	90	P/P@515-1030 nm	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-611A	6 × 6 × 0.5	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-612A	6 × 6 × 0.5	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-613A	6 × 6 × 0.5	23.4	90	AR/AR@515+1030 nm	SHG@1030 nm, Type 1
BBO-614A	6 × 6 × 0.5	22.7	90	P/P@1600-2600/800-1300	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-615A	6 × 6 × 1	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-616A	6 × 6 × 1	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-617A	6 × 6 × 1	23.4	90	AR/AR@515+1030 nm	SHG@1030 nm, Type 1
BBO-618A	6 × 6 × 1.5	23.4	90	AR/AR@515+1030 nm	SHG@1030 nm, Type 1
BBO-619A	6 × 6 × 1.5	23	90	P/P@515-1030 nm	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-620A	6 × 6 × 2	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-621A	6 × 6 × 2	23.4	90	AR/AR@515+1030 nm	SHG@1030 nm, Type 1
BBO-622A	6 × 6 × 2	31.5	90	P/P@400-800 nm	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-623A	6 × 6 × 3	23.4	90	AR/AR@515+1030 nm	SHG@1030 nm, Type 1
BBO-701A	7 × 7 × 6	47.6	90	P/P@532/266 nm	4HG@1064 nm, Type 1
BBO-801A	8 × 8 × 0.6	30	90	P/P@750-1500 nm	Type 2 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-802A	8 × 8 × 0.8	23.4	90	AR/AR@1030+515	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-803A	8 × 8 × 1	29.2	90	P/P 200-300	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-804A	8 × 8 × 2	23.4	90	AR/AR@515+1030 nm	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-1001A	10 × 10 × 0.01	44.3	90	P/P@400-800/266 nm on UVFS substrate 10102 mm	THG@800 nm, Type 1
BBO-1002A	10 × 10 × 0.02	44.3	90	P/P@400-800/266 nm on UVFS substrate 10102 mm	THG@800 nm, Type 1
BBO-1003A	10 × 10 × 0.05	44.3	90	P/P@400-800/266 nm on UVFS substrate 10102 mm	THG@800 nm, Type 1
BBO-1004A	10 × 10 × 0.1	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-1005A	10 × 10 × 0.1	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-1006A	10 × 10 × 0.2	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-1007A	10 × 10 × 0.2	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-1008A	10 × 10 × 0.2	28	90	P/P@380-1000/760-2000 nm	Type 1 phase matching Non-Standard SHG, THG, SFG, DFG, OPG, OPA, OPO applications
BBO-1009A	10 × 10 × 0.5	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-1010A	10 × 10 × 0.5	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-1011A	10 × 10 × 1	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-1012A	10 × 10 × 1	44.3	90	P/P@400-800/266 nm	THG@800 nm, Type 1
BBO-1013A	10 × 10 × 2	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1
BBO-1014A	10 × 10 × 2	29.2	90	P/P@400-800 nm	SHG@800 nm, Type 1

Technical Parameters

Argument Name	Values and Ranges
Size Tolerance	±0.1 mm
Dimension Tolerance	Δq < 0.5°, Δj < 0.5°
Clear Aperture	> 90%
Surface Quality	20/10
Flatness	< λ/8@633nm
Wavefront Distortion	< λ/4 @633nm
Parallelism	< 20 arc sec
Perpendicularity	< 5 arc min
Coating	AR, BBAR, P-coatings
Quality Warranty Period	1 year (with normal use)

Crystal Structure and Physical Properties

Argument Name	Values and Ranges
Crystal Structure	Trigonal，Space Group R3c
Crystal Parameter	a=b=12.532 Å，c=12.717 Å，Z=6
Melting Point	About 1095°C
O ptical uniformity	δn≈10-6/cm
Mohs Hardness	4
Density	3.85 g/cm3
Absorption Coefficient	< 0.1%/cm(@ 1064nm)
Specific Heat	1.91 J/cm3 × K
Deliquescence	Low
Thermal Expansion Coefficients	α11=4 × 10-6/K；α33=36 × 10-6/K
Thermal Conductivity	1.2 W/m/K（⊥c）；1.6 W/m/K（∥c）

Description

We offer:

♦ BBO crystals with aperture up to 25 × 25 mm, length up to 25 mm

♦ Thin BBO crystals down to 5 µm thick

♦ AR, BBAR, P-coatings

♦ BBO with gold electrodes for electro-optical (e/o) applications

♦ Different mounting and repolishing services

Main features:

♦ Wide transmission band range (190—3500 nm)

♦ Wide range of phase matching bands (410-3500 nm)

♦ High damage threshold

Typical applications:

♦ Frequency doubling, tripling and mixing of dye lasers

♦ Double, triple, quadruple, and quintuple frequency of Nd:YAG and Nd:YLF lasers

♦ High frequency multiplication conversion rate (6 times KDP)

♦ Optical Parametric Amplifier (OPA) and Optical Parametric Oscillator (OPO)

♦ Frequency doubling of ruby and argon ion lasers

♦ Deep ultraviolet laser, all-solid-state tunable laser, etc.

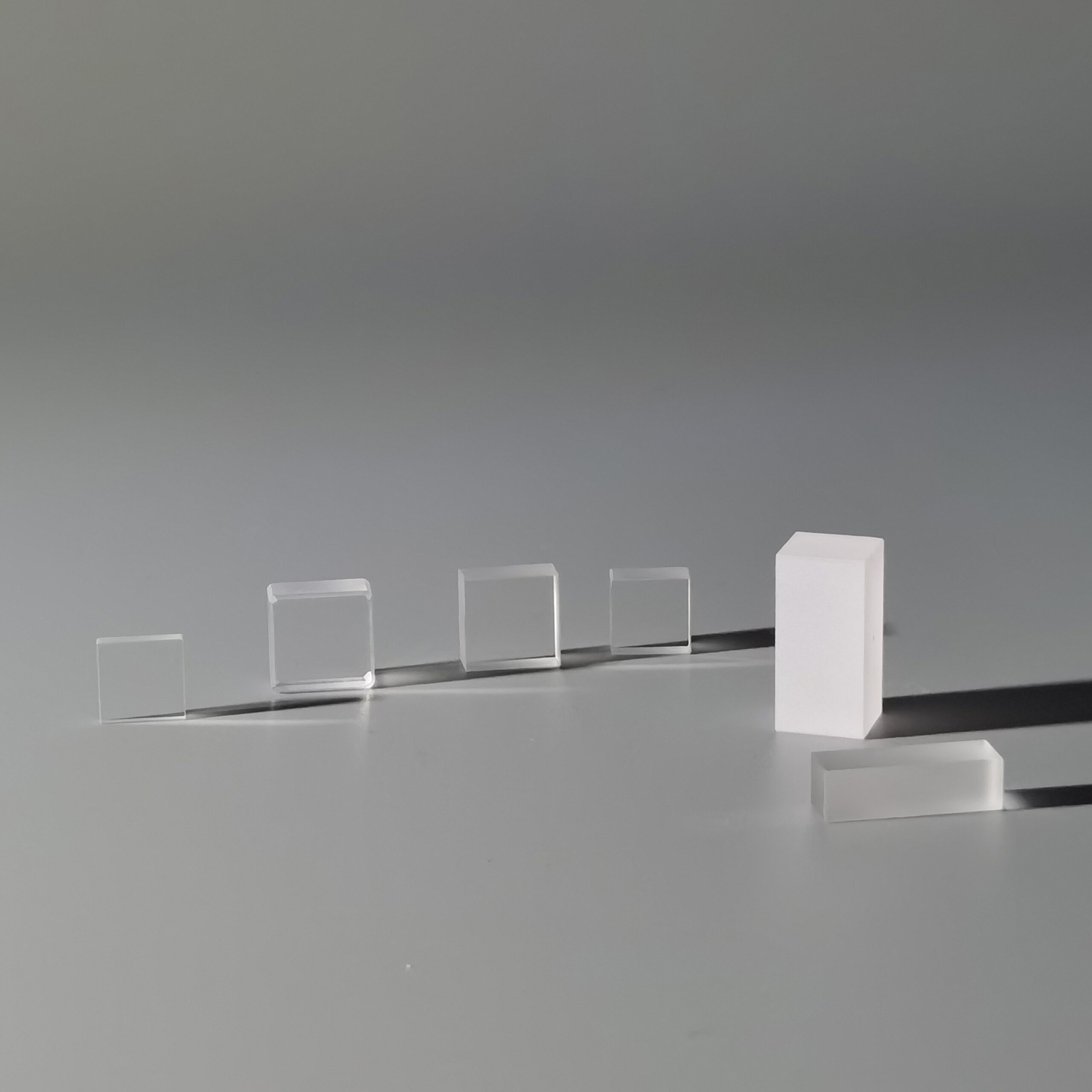

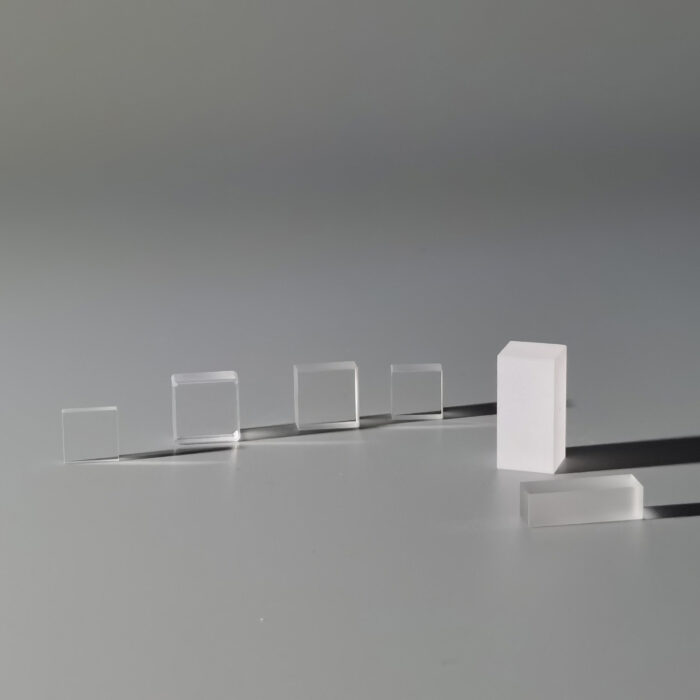

BBO
