COMPARING PRISM COUPLER AND ELLIPSOMETER





VS

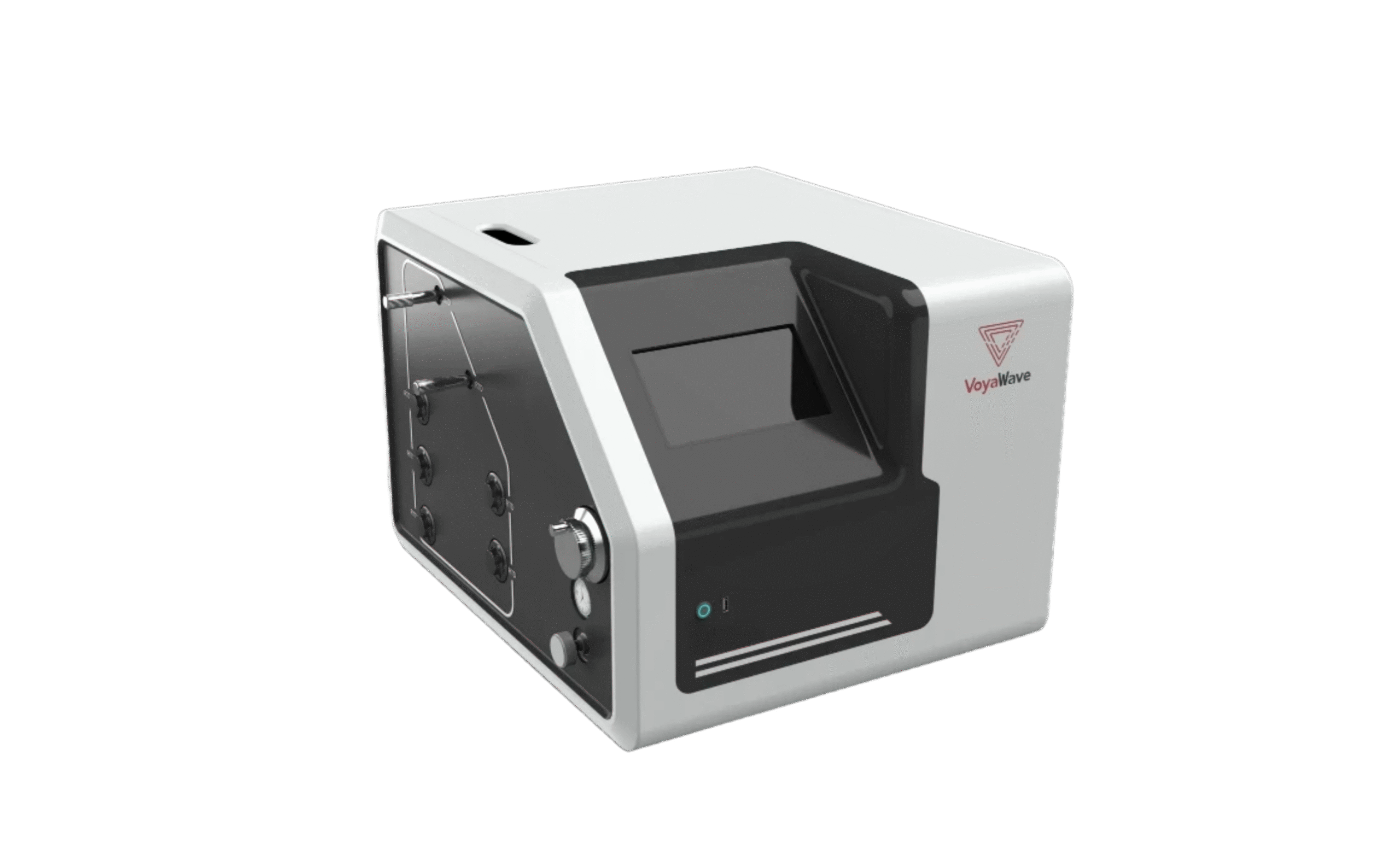

PRISM COUPLER

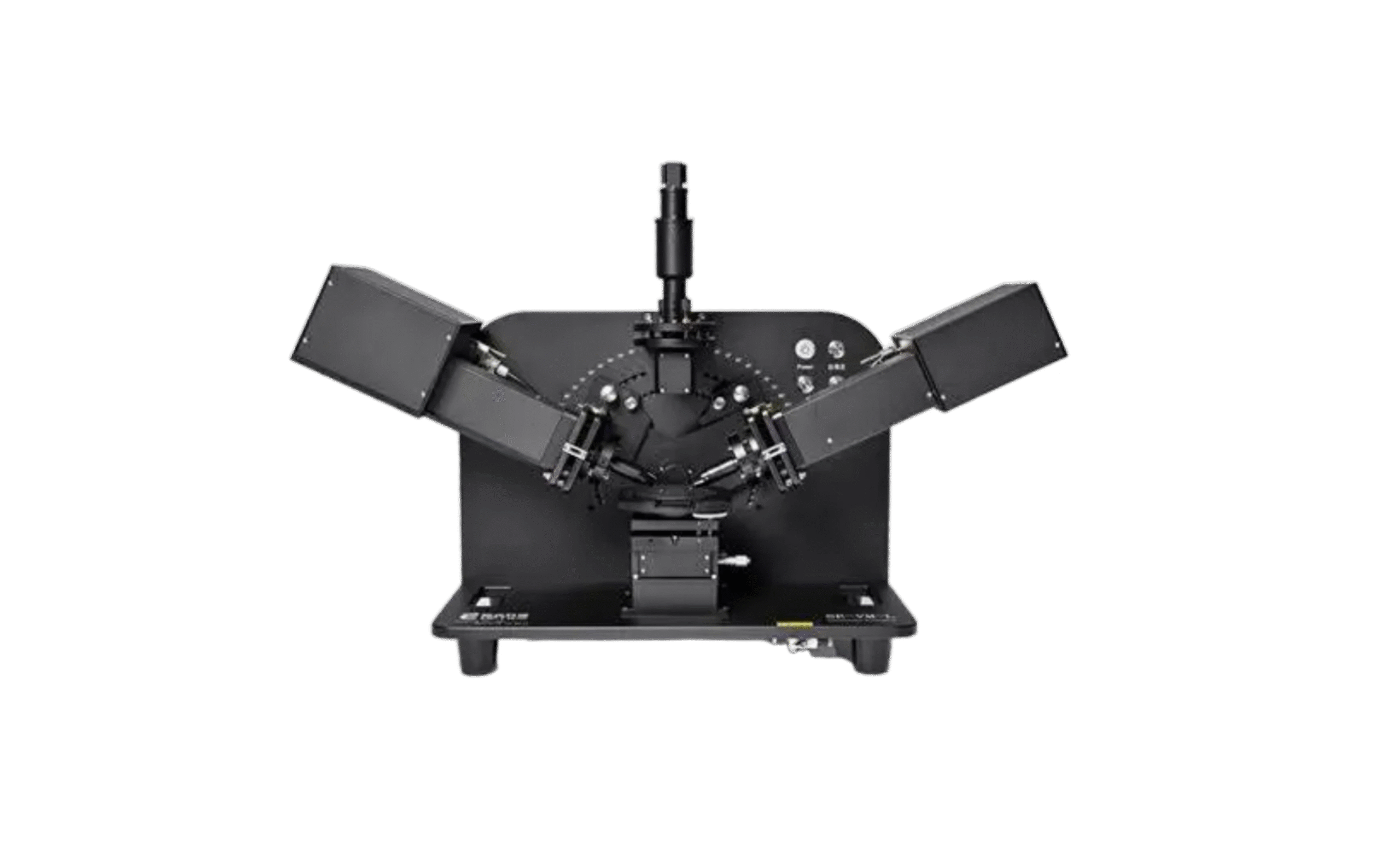

ELLIPSOME

 COMPARISON OF PRINCIPLES

OPTICAL WAVEGUIDE TECHNOLOGY

Measure the modes at different angles and obtain the refractive index and thickness.



principle

POLARIZATION STATE CHANGE

Receive the intensity and polarization state of monochromatic light reflected by the sample.

YES

Obtain four parameters (refractive indices and thicknesses of both layers).

Bilayer Film

NO

Only single-layer films.

NO EFFECT

Optical Absorption

AFFECT

Highly sensitive

 COMPARATIVE MEASUREMENT OF FILM THICKNESS

 0.4 μm - 150 μm

Measurement Range

 0.1 nm - 50 μm



 YES

Direct acquisition of film thickness and refractive index.

Measurement of Film Thickness

 YES

For films >50μm , initial value determination via secondary instrument is required, with compromised accuracy.

 YES



Films on Transparent Substrates

  NO

 COMPARATIVE MEASUREMENT OF REFRACTIVE INDEX

 HIGH ACCURACY

Accuracy: ±0.0005

Refractive Index Accuracy

 LOW ACCURACY

Accuracy degrades by 1-2 orders of magnitude, depend on light source and detector performance.

HIGH ACCURACY

Resolution: ±0.0003

Refractive Index Resolution

LOW ACCURACY

Resolution decreases by 1-2 orders of magnitude, depend on light source and detector performance.

YES

Measures only the real component of the refractive index in bulk materials.

Measurement Of Bulk Materials

YES

Capable of measuring both real and imaginary components in bulk materials, with reduced accuracy.

YES

Enables refractive index and birefringence measurements in x, y, z directions for both thin films and bulk materials.

Anisotropy Measurement

NO



NO EFFECT



Sensitivity To Substrate Materials

AFFECT

Prior knowledge of both real and imaginary components of the substrate refractive index is mandatory.
