Technical Parameters
| Argument Name | Values and Ranges |
|---|---|
| Input Voltage Range | 24 VDC |
| Output Voltage Range | 0~20 V |
| Output Current | 0~10 A |
| Dimensions | 180 mm*120 mm*50 mm |
| Remote Interface | RS485 |
| Channels | Four channels (simultaneous operation possible) |

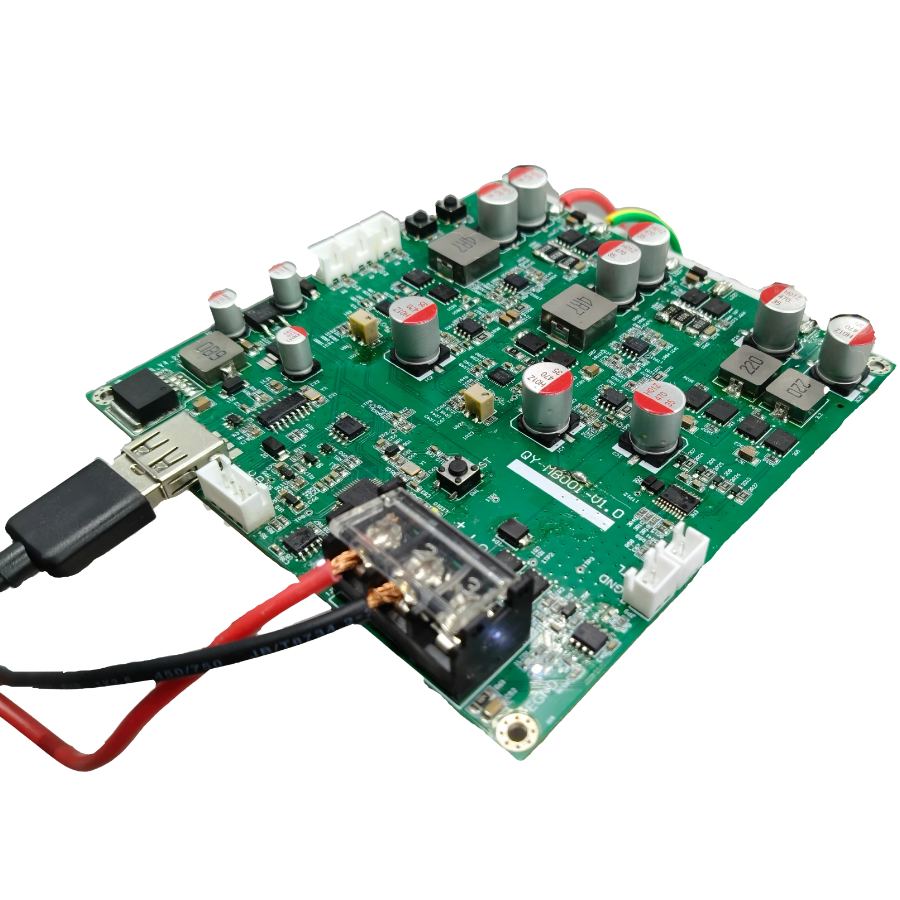

V5LD-01 Laser Drive Module
The V5LD-01 laser driver module employs advanced digital signal processing technology and precision algorithms. It integrates high accuracy, high stability, and high efficiency to precisely control laser output. This allows for high-precision adjustment of the laser output power, achieving a power regulation accuracy of ±0.1%. It meets the diverse laser requirements in various scenarios, providing users with a stable and reliable laser driving solution.
Technical Parameters
Description
Product Features
● High-precision driving.
● Wide range current output, high power driving, meeting diverse application scenarios.
● Supports simultaneous driving of four LD lasers.
● Slow power down when turning off the driver, protecting the laser and improving system safety.
